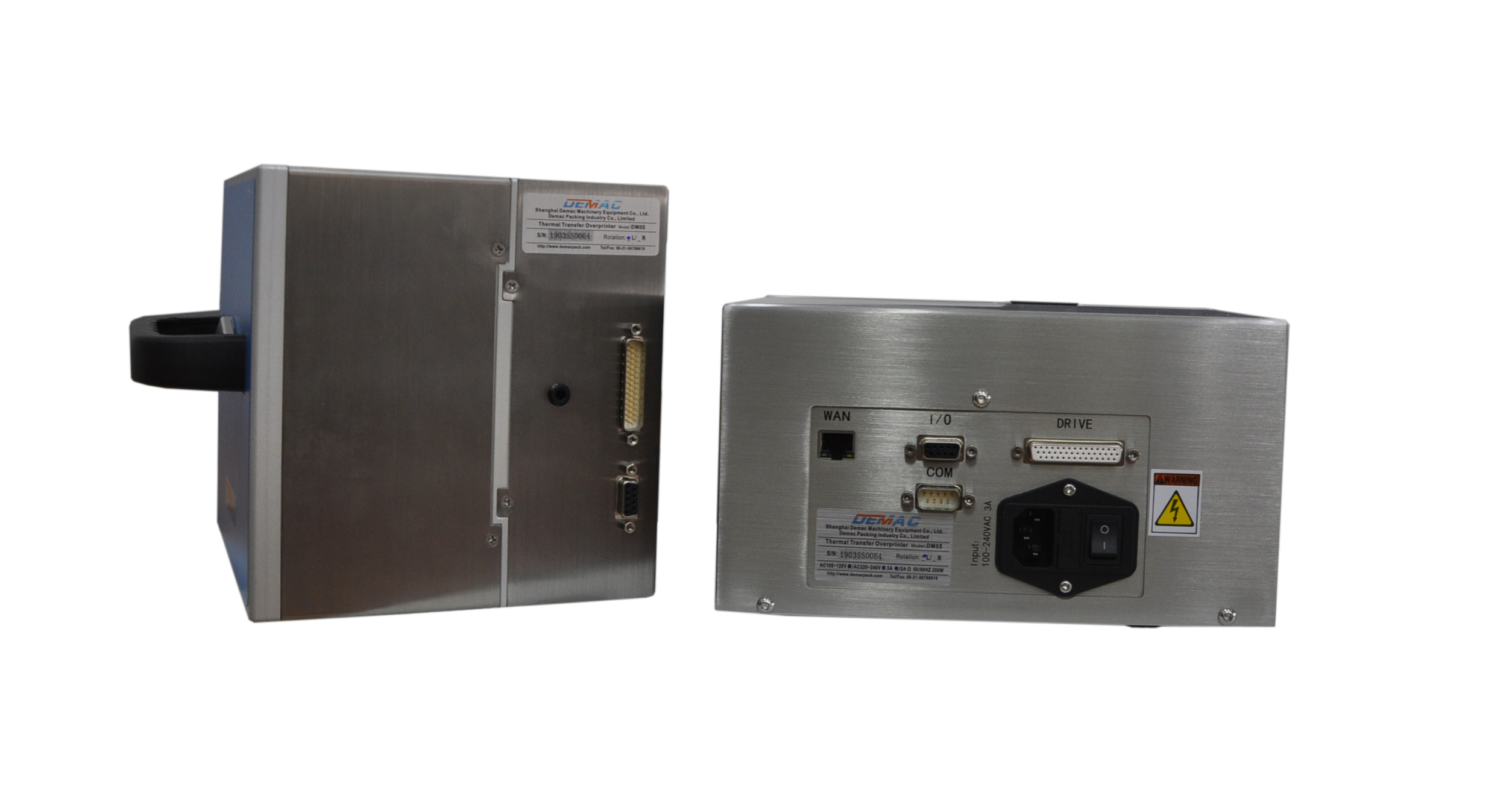

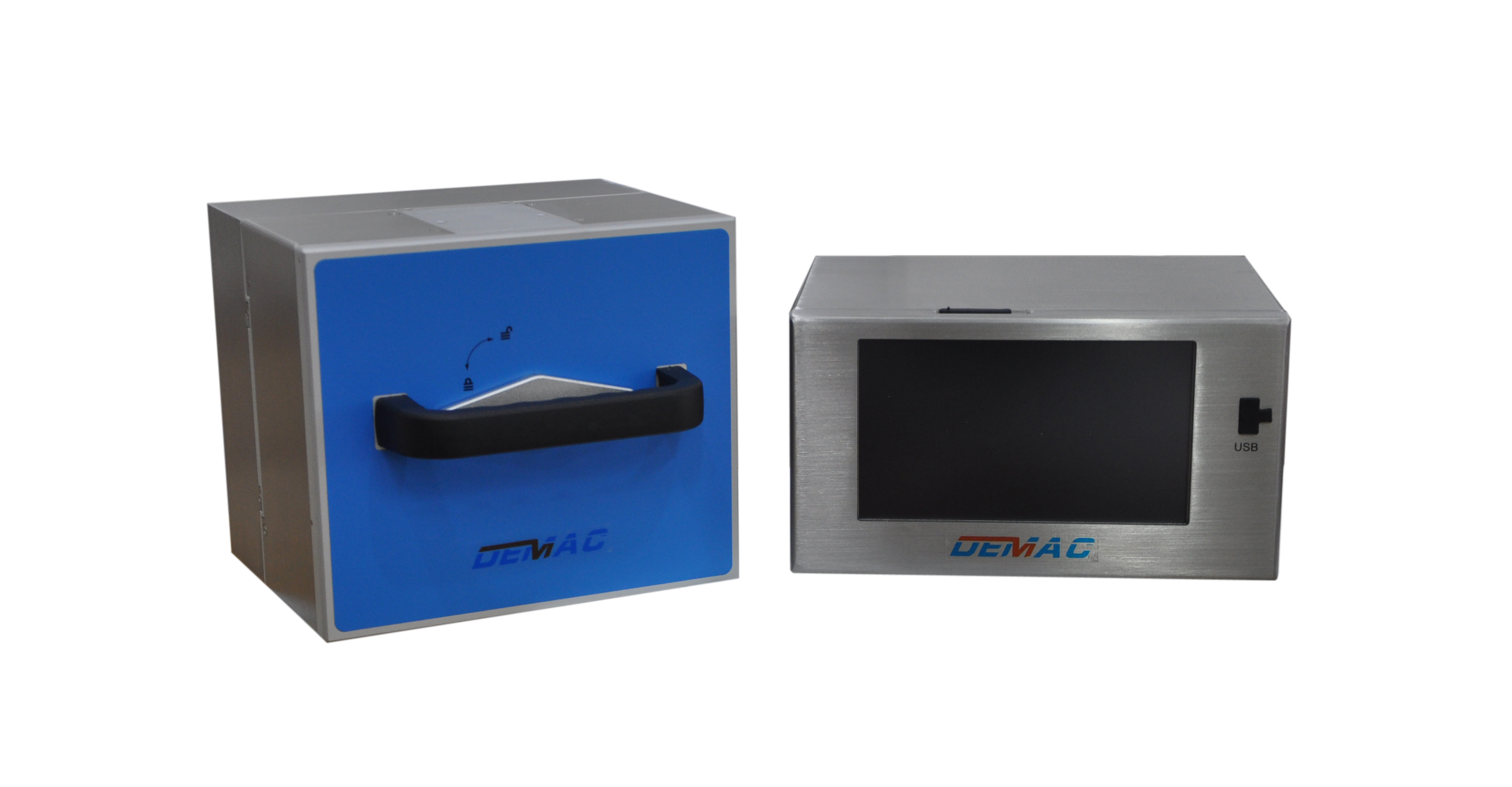

DM05 Thermal Transfer Overprinter

One of the world's best cost-effctive smart coding machines, provide excellent solutions to soft-packaging coding in wide range of fields like food, pharmacy, daily use chemicals, seeds, daily use paper and financial bill.

300 dpi resolution improves the cosmetic level of your packaging.
Supporting for printing real-time date, time and batch No., easy-to-learn editing software helps to edit print text easily as you want, and supports 600 meter ribbon reducing the replacement frequency.
No damage to package, extending the valid period,a clear mark avoids the product being removed from the goods shelf at an early time.

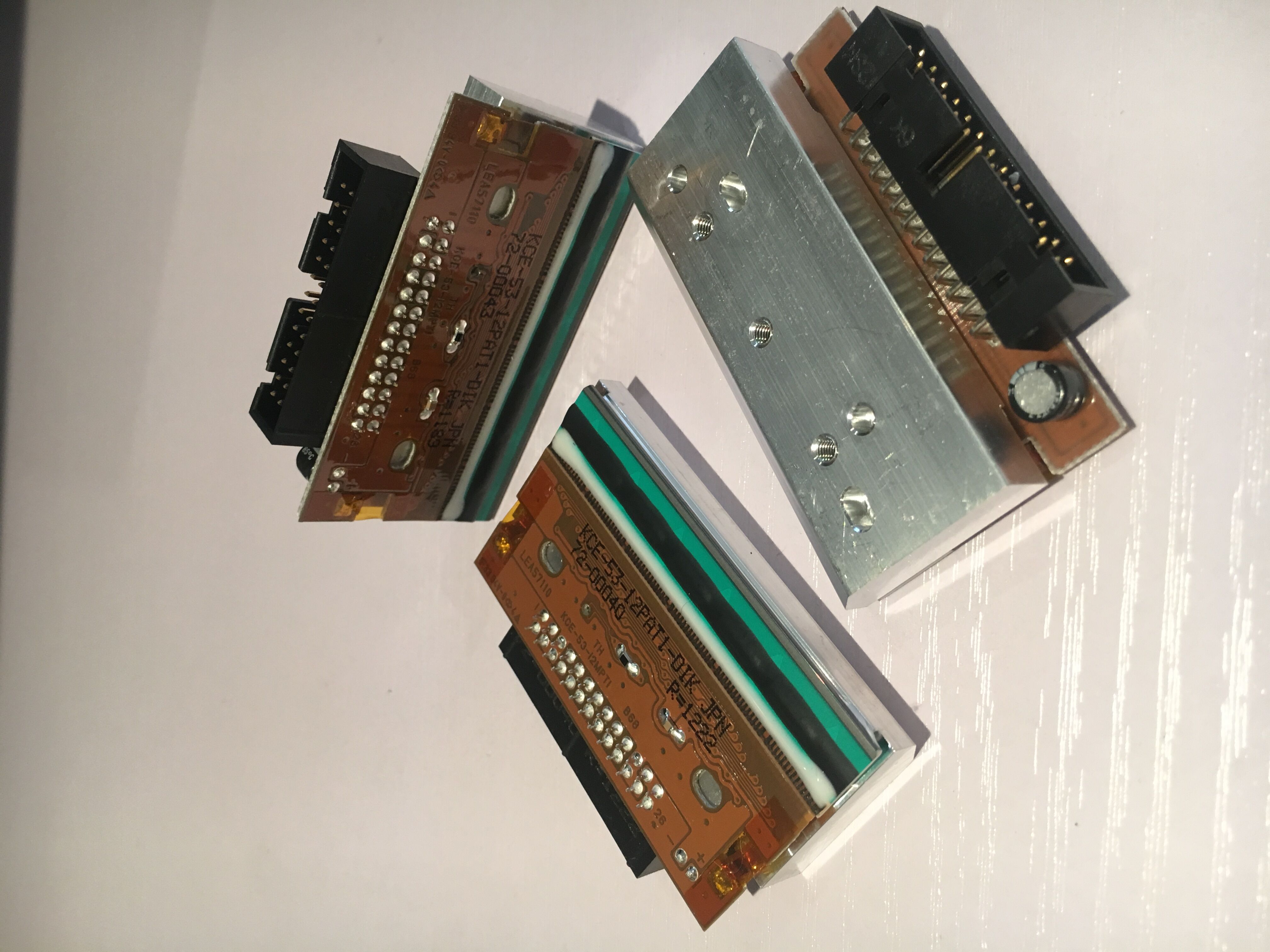

Supported by 32mm&53mm print head, and several sizes ribbons （22, 25, 30, 33, 50mm width)can meet variable demands of printing,print gap can be as small as 0.5mm.
Cassette protect the ribbon and keeps it clean, ensuring the safety of production and products.

Specifications
Model	DM03 Intermittent	DM03 Continuous	DM05 Intermittent		DM05 Continuous
Print Head	32mm,300dpi (12points/mm)		53mm,300dpi (12pionts/mm)
Print Area	32mm*70mm	32mm*150mm	53mm*70mm		53mm*150mm
Print Speed	At Fixed Speed	≤40 m/min	At Fixed Speed		≤40 m/min
Print Frequency	≤300 times/min
Max Ribbon Length	500mm		600mm
Ribbon Width	22mm~33mm		35mm~55mm
Interface	USB,RS232,TCP/IP
Power Supply	AV110~240V 50/60Hz
Power	200W
Operation Temp.	0 ~ 40℃
Relative Humidity	10% ~ 95%（Non-condensing）
Air Supply	6 bar / 90 psi (max),dry.clean
Weight	Print Unit: 8.5kg, Controller Box: 2.0kg			Print Unit: 9.5kg,Controller Box: 2.0kg
Dimension(LWH)	Print Unit: 188190188 (mm), Controller Box: 175235110(mm)			Print Unit: 210210185 (mm), Controller Box: 175235110(mm)
