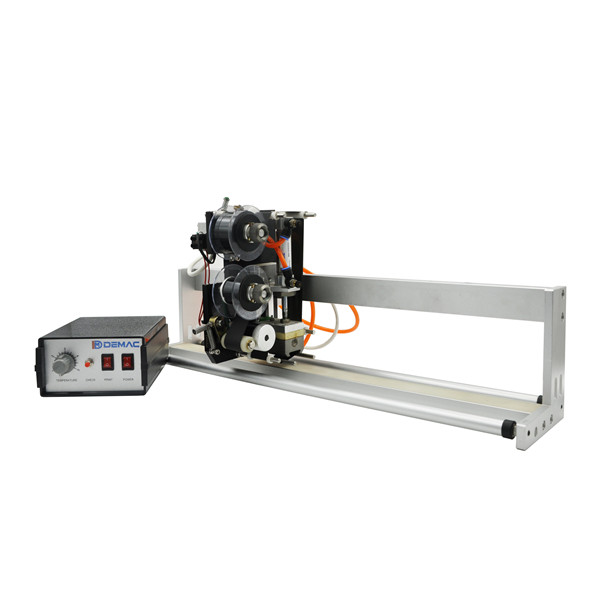

DM-208Q Pneumatic On-line Hot Stamp Coder

DM-208Q Air-Driven Online Hot Stamp Coder,driven by air source.
Air-Driven reciprocating high speed coder, is suitable for the coding of various vertical and horizontal bag filling and packing machines with own air source,and high speed labeling machine.
It has the characteristics of small size, high speed, easy installation, widely used in food, beverage, medicine and other industries.
It adopts hot stamping ribbon, printing words clearly.
Advanced technology of ribbon thermal printing can print characters clearly on all kinds of soft packaging materials.
Unique shaft structure for changing words is convenient and fast.
All shafts and standard fittings are made of stainless steel.
Applicable to any soft packing material: the coding of cartons, film, label, leather, pharmaceutical, food and other industries.

Specifications
Model	DM-208Q
Print Area	Single line: max 4 mm35 mm, about 15 characters; Two lines:max 8 mm35 mm, about 30 characters; Three lines:max 12 mm*35 mm, about 45 characters; Numbers，letters，symbols can be printed,and any other special characters can also be customized.
Print Speed	≤ 80 times/min
Types	2315 mm, 2415 mm
Ribbon Size	25mm100m, 30mm100m, 35mm*100m,
Vol & Power	AC200 V±10 V, 50/60 Hz, 200 W
Mode	Air-driven
Consumable	Hot Stamping Ribbon
Net Weight	9 kg
