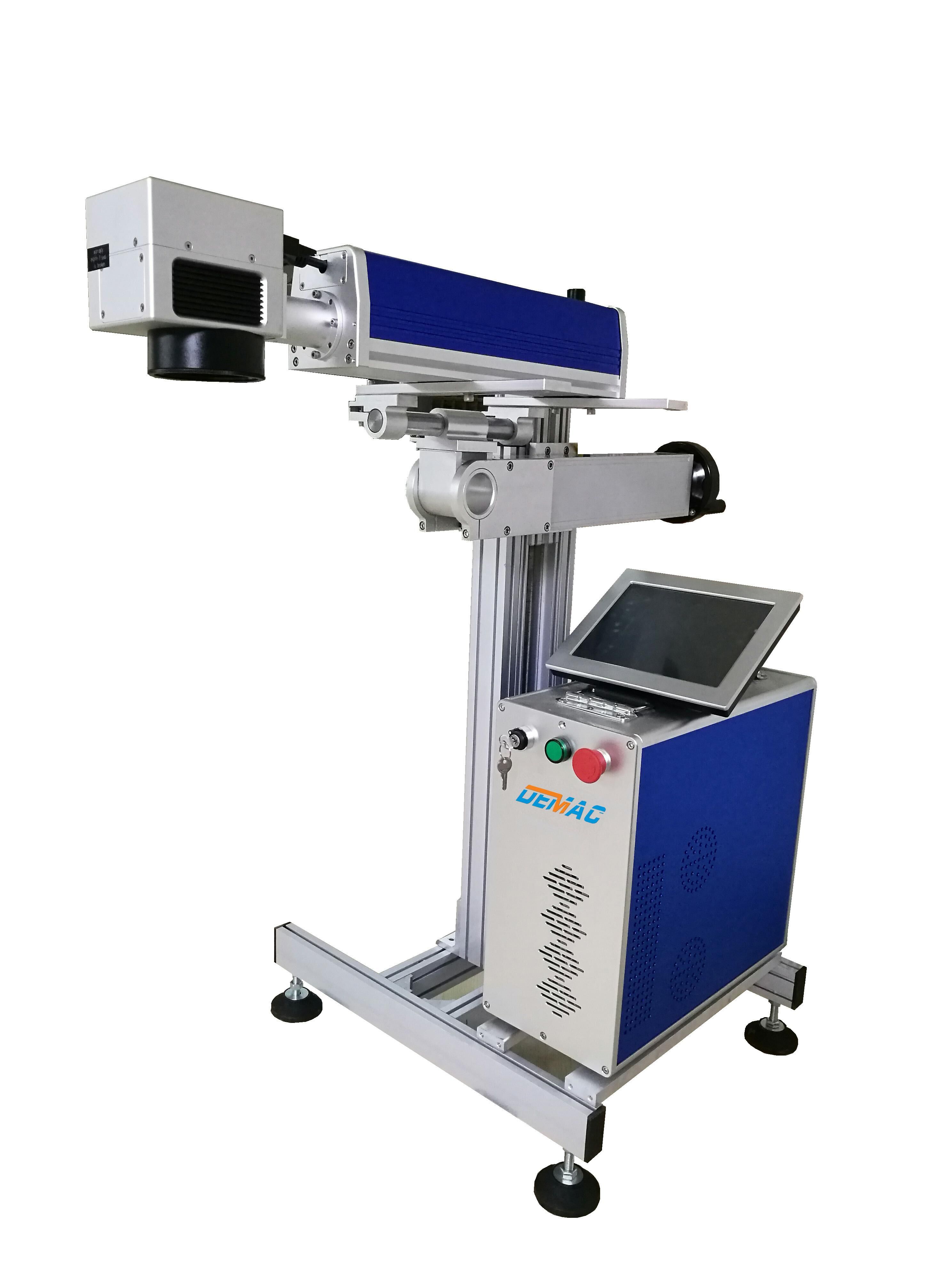

DM-F Series Fiber Laser Coder

DM-F Series Fiber Laser Coder can print series numbers, batch number, bar code, QR code, Logo and flexible text on various products,
such as IC chips, electronic components, hardware tools, jewelry, automobile and motorcycle parts, plastic products, building materials and pipes.

It can mark on a variety of metal and non-metal materials, especially for high hardness, high melting point and brittle materials.
The thin laser beam can process material with small consumption and affected het zone, and various fine and complicated patterns can be marked on very tiny surfaces.
High electronic-optical conversion rare, no power coupling loss,saving operating costs,long life of the laser tube, maintenance-free,without consumable.

Specifications
Model	DM-F20 / F30
Laser Power	20W / 30W
Power	220V,AC50 / 60HHz,1KW
Print speed	≦12000mm/s()depend on marking content and material
Print frequency	≦1000times/min
Print range	7070mm,11o110mm,300*300mm,4008400mm for option
COM Interface	USB/RS232/Internet
Operation Panel	10 inch Touch Screen /PC
Application	Food Manufacturing,Microelectronics, Automotive Industry,Medical Equipment, Sanitary Ware,Building Materials
